Trio 4502

G1

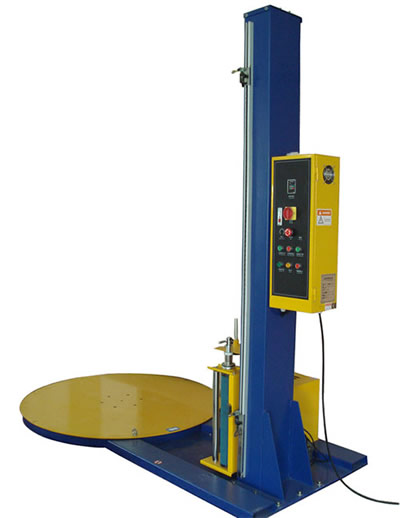

Trio-4502 Wrapping Machine

Features

  • Control System:AC Contactors
  • Turntable speed is adjustable
  • Film carriage is mechanical brake
  • Precise phase stopping at cycle end
  • Top and bottom limit switches to find pallet height
  • Manual control
  • Ramp
  • Photocell
  • Power supply: 110V or 380V
  • Turntable diameter: 1650mm; 1800mm; 2000mm
  • Pallett height: 2400nn; 2650mm; 3000mm
  • For black colour pallet
  • Diameter of turntable:1500mm
  • Max packing height:2100mm
  • Max packing weight:2000kg
  • Film reel inside diameter:75mm
  • Film reel outside diameter:250mm
  • Film reel width:500mm
  • Turntable speed:1-10 cycles/Minute
  • Turntable height:80mm
  • Turntable motor:0.75kw
  • Film-rack lift motor:0.18kw
  • Power supply: 380V 50HZ 3Phase
  • Dimension of machine(Lx W x H):1510X2500X2600mm
