Trio 4503

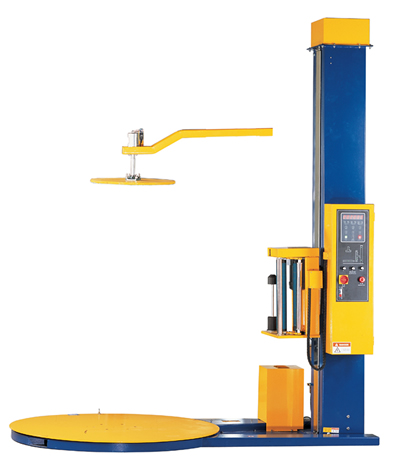

Trio-4503 Wrapping Machine

Features

  • Control System:PCB
  • Film carriage upward/downward speed is adjustable
  • Turntable speed is adjustable
  • Top wrapping cycles is adjustable from 0-9
  • Bottom wrapping cycle is adjustable from 0-9
  • Recycle wrapping rounds is adjustable from 0-9
  • Photocell sensering the pallet height
  • Precise phase stopping at cycle end
  • Manual control is available
  • Ramp
  • Press unit for light pallet
  • Power supply: 110V or 280V
  • Turntable diameter: 1650mm; 1800mm; 2000mm
  • Pallet height: 2400mm; 2650mm; 3000mm
  • For black colour pallet
  • Pre-stretch rate:250-300%
  • Diameter of turntable:1500mm
  • Max packing height:2100mm
  • Max packing weight:2000kg
  • Film reel inside diameter:75mm
  • Film reel outside diameter:250mm
  • Turntable speed:1-10 cycles/Minute
  • Turntable height:80mm
  • Turntable motor:0.75kw
  • Film-rack lift motor:0.18kw
  • Power supply:220V 50HZ 1Phase /380V 50HZ 3Phase
  • Dimension of machine(Lx W x H):1510X2500X2600mm
